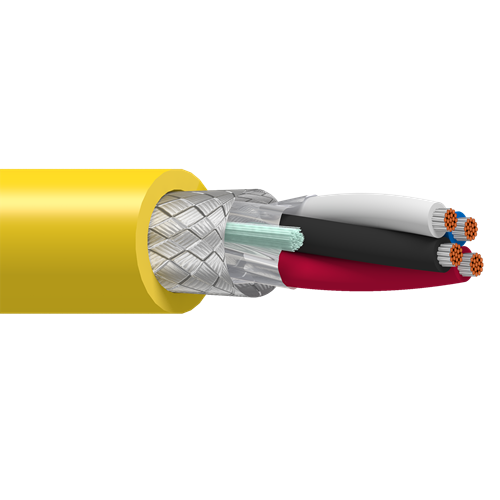

Belden 3083A 15 AWG 1 Pair 18 AWG 1 Pair Tinned Copper 300V DeviceBus Cable

Description:

DeviceBus for ODVA DeviceNet, 2 Pair 15+18 AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil and OA Tinned Copper Braid (65%) Shield, CPE Outer Jacket, CMG PLTC.

Insulation:

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)

Element: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Insulation Diameter: 0.150 in (3.81 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.058 in (1.5 mm)
• Nom. Diameter: 0.476 in (12.1 mm)
• Overall Cable Diameter (Nominal): 0.476 in (12.1 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.015

Standards:

• Voltage Rating: 300 V (CMG, PLTC-ER)
• Operating Temperature: -20°C to +105°C
• Nom. Characteristic Impedance: 120 Ohms

Applications:

• harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
