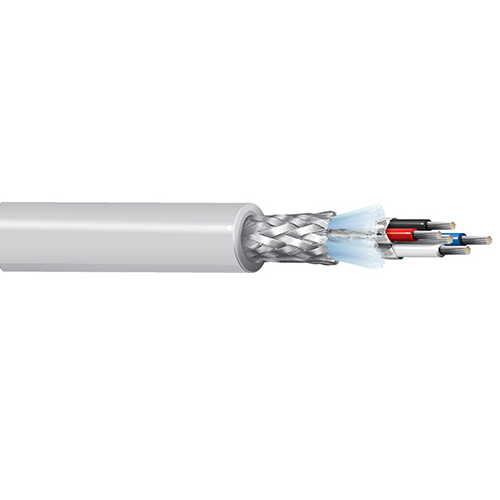

Belden 3082A 15 AWG 1 Pair 18 AWG 1 Pair Tinned Copper 600V DeviceBus Cable

Description:

DeviceBus for ODVA DeviceNet, 2 Pair 15+18 AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil and OA Tinned Copper Braid (65%) Shield, PVC Outer Jacket, CMG PLTC-ER.

Insulation:

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)

Element: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Insulation Diameter: 0.150 in (3.81 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.060 in (1.5 mm)
• Nom. Diameter: 0.480 in (12.2 mm)
• Overall Cable Diameter (Nominal): 0.480 in (12.2 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.010

Standards:

• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 120 Ohms
• Voltage Rating: 300 V (CMG, PLTC-ER), 600 V (AWM 20201),  300 V (AWM I/II A)

Applications:

• harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
