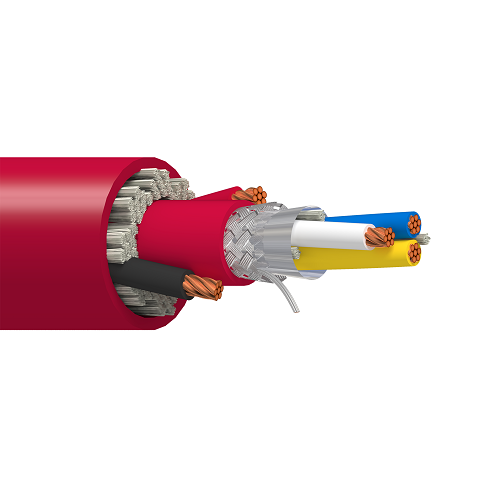

Belden 1349A 20 AWG 3 Conductor 18 AWG 2 Conductor Bare Copper 300V CC Link Cable
Belden 1349A 20 AWG 3 Conductor 18 AWG 2 Conductor Bare Copper 300V CC Link Cable
SKU: SKU: NNC1349A Download PDF
gauge:
- Belden 1349A 20 AWG 3 Conductor 18 AWG 2 Conductor Bare Copper 300V CC Link Cable
- Belden 1349A 20 AWG 3 Conductor 18 AWG 2 Conductor Bare Copper 300V CC Link Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $8.71 /FT
Regular price
BEFORE
Sale price
Now $8.71 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 1349A 20 AWG 3 Conductor 18 AWG 2 Conductor Bare Copper 300V CC Link Cable
Description:-
CC Link, 5 Conductor 18+20 AWG (7x26+7x28) Bare Copper, PVC+PO Insulation, Overall Beldfoil+Tinned Copper Braid (78%) Shield, PVC Inner Jacket, PVC Outer Jacket, CM.
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.022 in
• Material: PE - Polyethylene (Foam)
• Nominal Wall Thickness: 0.03 in
Inner Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper
• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 78%
• Material: Tinned Copper (TC)
Inner Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.309 in
• Nominal Wall Thickness: 0.035 in
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.512 in
• Nominal Wall Thickness: 0.053 in
• Separator Material: Polyester Tape
Standards:-
• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -30°C to +60°C
• Nom. Characteristic Impedance: 120 Ohm, 110 Ohm
Applications:-
• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Specifications:-
Element: 20 AWG
• Size (AWG): 20
• No. of Conductor: 3
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
Element: 18 AWG
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 1349A
Description:-
CC Link, 5 Conductor 18+20 AWG (7x26+7x28) Bare Copper, PVC+PO Insulation, Overall Beldfoil+Tinned Copper Braid (78%) Shield, PVC Inner Jacket, PVC Outer Jacket, CM.
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.022 in
• Material: PE - Polyethylene (Foam)
• Nominal Wall Thickness: 0.03 in
Inner Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper
• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 78%
• Material: Tinned Copper (TC)
Inner Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.309 in
• Nominal Wall Thickness: 0.035 in
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.512 in
• Nominal Wall Thickness: 0.053 in
• Separator Material: Polyester Tape
Standards:-
• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -30°C to +60°C
• Nom. Characteristic Impedance: 120 Ohm, 110 Ohm
Applications:-
• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Specifications:-
Element: 20 AWG
• Size (AWG): 20
• No. of Conductor: 3
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
Element: 18 AWG
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 1349A
