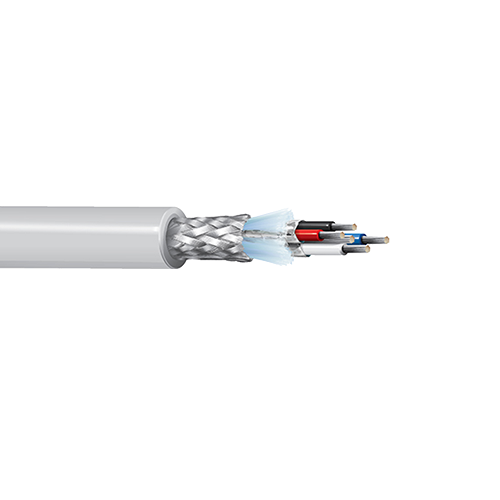

Belden 123082A 18 AWG 1 Pair 15 AWG 1 Pair Tinned Copper 300V DeviceBus for ODVA DeviceNet Cable

Description:-

DeviceBus for ODVA DeviceNet, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil and OA Tinned Copper Braid (65%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM PLTC.

Insulation:-

Element: 18 AWG
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.053 in (1.3 mm)

Element: 15 AWG
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.021 in (0.53 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Armor:-

• Armor Type and Material: AIA - Aluminum Interlock Armor

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.06 in (1.5 mm)
• Nom. Diameter: 0.480 in (12.2 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.783 in (19.9 mm)
• Overall Cable Diameter (Nominal): 0.783 in (19.9 mm)

Standards:-

• UL Voltage Rating: 300 V (CM, PLTC)
• Operating Temperature Range: -20°C to 75°C
• 18 AWG Nom. Characteristic Impedance: 120 Ohm

Applications:-

• Exposure to rodent, crush, or cut-through force, harsh environment, ODVA device-level communication, used with CIP (Common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher-level devices such as PLC and PC in industrial automation, bus topology, etc.

Specifications:-

Element: 18 AWG
• Size (AWG): 18
• No. of Pairs: 1
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper

Element: 15 AWG
• Size (AWG): 15
• No. of Pairs: 1
• Stranding: 19x27
• Conductor Material: TC - Tinned Copper
• Part Number: 123082A
