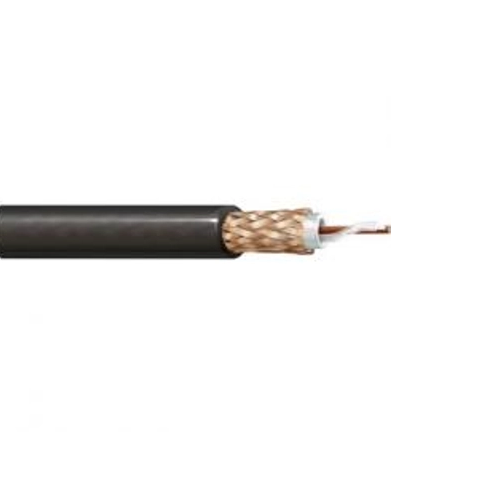

Belden 9268 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

Belden 9268 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

SKU: NES9268   Download PDF

Select a gauge:
  • Belden 9268 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.08 /FT   Web pricing policy
BEFORE   Now $3.08 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9268 22 AWG 1 Conductor Solid RG-62A/U 93 Ohm Coax Cable

Description:

93 ohm, RG-62A/U type, 22 AWG solid 0.025" bare copper-covered steel conductor, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: Semi-Solid PE - Semi-Solid Polyethylene
• Nom. Diameter: 3.708 mm
• Wall Thickness: 0.660 mm

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%
• Outer Shield Separator Material: Polyester Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.041 mm
• Overall Cable Diameter (Nominal): 6.604 mm

Specifications:

• Size (AWG): 22
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.635 mm
• Impedance: 93 Ohm
• RG Type: 62
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9268
