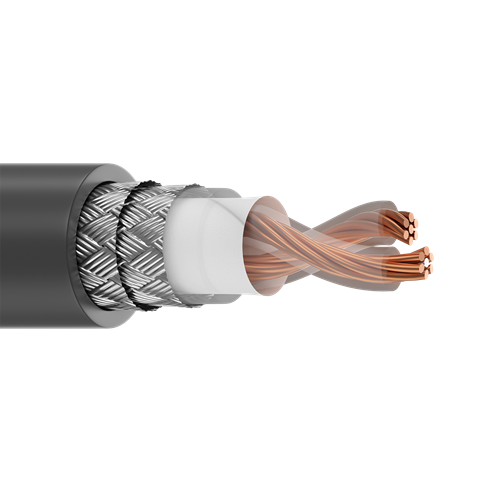

Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable

Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable

SKU: NES9250   Download PDF

Select a gauge:
  • Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $10.15 /FT   Web pricing policy
BEFORE   Now $10.15 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9250 18 AWG 1 Pair 7x26 Stranding RG-22B/U Twinax 95 Ohm Cable

Description:

Twinax 95Ω RG-22B/U Type, 1 Pair, 18 AWG (7x26) bare copper, polyethylene insulation, polyethylene inner jacket, tinned copper double braid shield (95% coverage each), non-contaminating PVC jacket.

Insulation:

• Pair Material: PE - Polyethylene
• Pair Nom. Insulation Diameter: 0.089 in (2.3 mm), 0.282 in (7.16 mm)
• PE on both conductors, PE over pair

Outer Shield:

• Layer 1: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.416 in (10.6 mm)
• Overall Cable Diameter (Nominal): 0.416 in (10.6 mm)

Applications:

• Computer, Instrumentation

Specifications:

• Size (AWG): 18
• Number of Pair: 1
• Stranding: 7x26
• Nom. Diameter: 0.046 in
• Impedance: 95 Ohm
• RG Type: 22
• Conductor Material: BC - Bare Copper, BC+TC - Bare Copper + Tinned Copper
• Part Number: 9250
