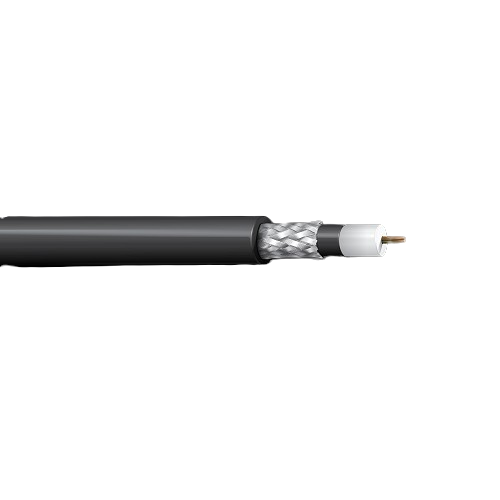

Belden 9239 26 AWG 1 Conductor 7x34 Stranding Bare Copper Covered Steel 1100V Audio Coax Cable
Belden 9239 26 AWG 1 Conductor 7x34 Stranding Bare Copper Covered Steel 1100V Audio Coax Cable
SKU: SKU: NES9239 Download PDF
gauge:
- Belden 9239 26 AWG 1 Conductor 7x34 Stranding Bare Copper Covered Steel 1100V Audio Coax Cable
- Belden 9239 26 AWG 1 Conductor 7x34 Stranding Bare Copper Covered Steel 1100V Audio Coax Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $1.38 /FT
Regular price
BEFORE
Sale price
Now $1.38 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 9239 26 AWG 1 Conductor 7x34 Stranding Bare Copper Covered Steel 1100V Audio Coax Cable
Description:-
Audio Coax, Low Noise, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor, PE Insulation, PE Conductive Layer, 90% Tinned Copper Braid Shield, PVC Jacket.
Insulation:-
• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.044 in (1.1 mm)
• Material: PVC - Polyvinyl Chloride (Conductive)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)
Outer Shield:-
• Layer: 1
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.101 in (2.57 mm)
• Overall Cable Diameter (Nominal): 0.101 in (2.57 mm)
Standards:-
• Voltage Rating: 1100 V
• Operating Temperature Range: -40°C To +60°C
Applications:-
• Low noise microphone, Analog audio, Instrumentation
Specifications:-
• Size (AWG): 26
• No. of Conductor: 1
• Stranding: 7x34
• RG Type: 174
• Nominal Diameter: 0.006 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9239
Description:-
Audio Coax, Low Noise, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor, PE Insulation, PE Conductive Layer, 90% Tinned Copper Braid Shield, PVC Jacket.
Insulation:-
• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.044 in (1.1 mm)
• Material: PVC - Polyvinyl Chloride (Conductive)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)
Outer Shield:-
• Layer: 1
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.101 in (2.57 mm)
• Overall Cable Diameter (Nominal): 0.101 in (2.57 mm)
Standards:-
• Voltage Rating: 1100 V
• Operating Temperature Range: -40°C To +60°C
Applications:-
• Low noise microphone, Analog audio, Instrumentation
Specifications:-
• Size (AWG): 26
• No. of Conductor: 1
• Stranding: 7x34
• RG Type: 174
• Nominal Diameter: 0.006 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9239
