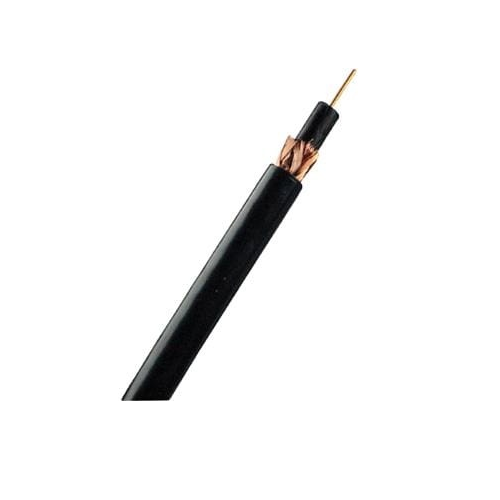

Belden 9224 Cable 22 AWG RG-59/U Special Audio Communication And Instrumentation Low Triboelectric Noise Coax Cable
Belden 9224 Cable 22 AWG RG-59/U Special Audio Communication And Instrumentation Low Triboelectric Noise Coax Cable
SKU: SKU:
Select a gauge:
- Belden 9224 Cable 22 AWG RG-59/U Special Audio Communication And Instrumentation Low Triboelectric Noise Coax Cable
- Belden 9224 Cable 22 AWG RG-59/U Special Audio Communication And Instrumentation Low Triboelectric Noise Coax Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Details
Description:
Twinax:
• Low Noise
• RG-59/U Type
• 22 AWG Solid .025″ Bare Copper-covered Steel Conductor
• Bare Copper Braid Shield (93% Coverage)
| technical specification: | |
| awg | 22 |
| standard lengths ft. | U-500 |
| standard lengths m | U-152.4 |
| standard unit weight lbs. | 19.5 |
| standard unit weight kg | 8.9 |
| conductor (stranding) diameter nom. dcr | 22 AWG (Solid) 0.025″ BCCS 54.0Ω/M′ 177.0Ω/km |
| nominal core od inch | 0.146 |
| nominal core od mm | 3.71 |
| shielding materials nom. dcr | BC Braid 93% Shield Coverage 2.5Ω/M′ 8.2Ω/km |
| nominal od inch | 0.242 |
| nominal od mm | 6.15 |
| nom. imp. (ω) | 75 |
| nom. vel. of prop. | 65% |
| nominal capacitancep f/ft. | 22 |
| nominal capacitancep f/m | 72 |
| belden cable part number | 9224 |
