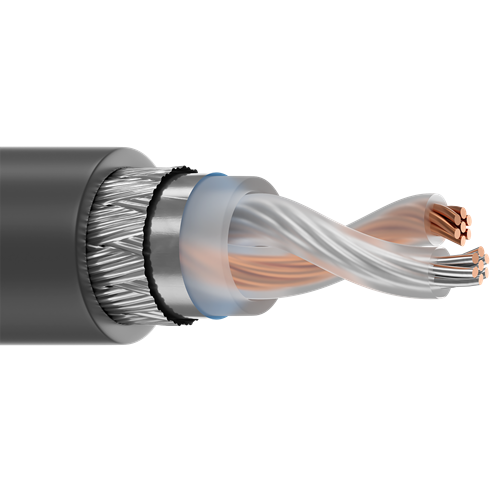

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

SKU: NES89207   Download PDF

Select a gauge:
  • Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $11.06 /FT   Web pricing policy
BEFORE   Now $11.06 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Description:

Twinax 100Ω, 1 Pair, 20 AWG (7x28), one tinned, one bare copper conductor, FEP insulation, FEP inner jacket, Duofoil + tinned copper braid shield 85%, FEP jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.072 in (1.8 mm), 0.201 in (5.11 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.259 in (6.58 mm)
• Overall Cable Diameter (Nominal): 0.259 in (6.58 mm)

Standards:

• Voltage Rating: 300 V (CMP).
• Impedance: 100 Ohms nominal.
• Operating Temperature Range: -70°C to +200°C.

Applications:

• Computer, Instrumentation

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper, BC - Bare Copper
• Cable Type: Twinaxial - Plenum (CMP rated).
• Part Number: 89207
