Product Details

Description:

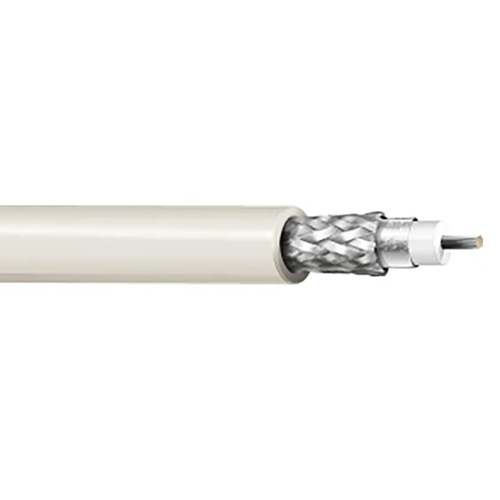

• Thinnet 10Base2, 20 AWG stranded (19x32) .037" tinned copper conductor, plenum Ethernet, FPFA insulation, Duobond® II + overall TC braid shield (93% coverage), Flamarrest® jacket.

Insulation:
• Material: FPFA - Foam Perflouoroalkoxy
• Dia. (mm): 2.413

Outer Jacket:
• Material: LS PVC - Low Smoke Polyvinyl Chloride

Suitable Applications
• Thin Ethernet

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -0°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 32.740 Kg/Km
• Max. Recommended Pulling Tension: 200.169 N
• Min. Bend Radius/Minor Axis: 44.450 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2P, CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• IEEE Specification: IEEE802.3 10Base2
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 58A/U

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance: 50 (Tolerance Ohms +/- 2)
• Nom. Inductance (μH/m): 0.208344
• Nom. Capacitance Conductor to Shiel (pF/m): 83.3374
• Nominal Velocity of Propagation: 80%
• Nominal Delay (ns/m): 4.16687
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 28.8728
• Max. Loop Resistance (ohm/km): 50.0024
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 19.0298
• Max. Operating Voltage - Non-UL: 300 V RMS

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 9907
