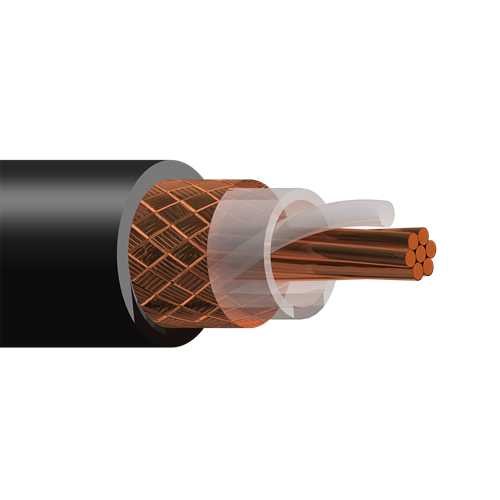

Belden 8255 24 AWG 1 Conductor 7x32 Stranding RG-62B/U 93 Ohm Coax Cable

Description:

Coax 93Ω RG-62B/U Type, 24 AWG (7x32) bare copper-covered steel conductor, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket.

Insulation:

• Material: PE - Polyethylene (Semi-Solid)
• Nom. Insulation Diameter: 0.146 in (3.71 mm)
• Solid PE monofilament spiral around conductor. Solid PE tube over monofilament

Outer Shield:

• Layer: 1
• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.242 in (6.15 mm)
• Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)

Applications:

• Computer, Instrumentation
