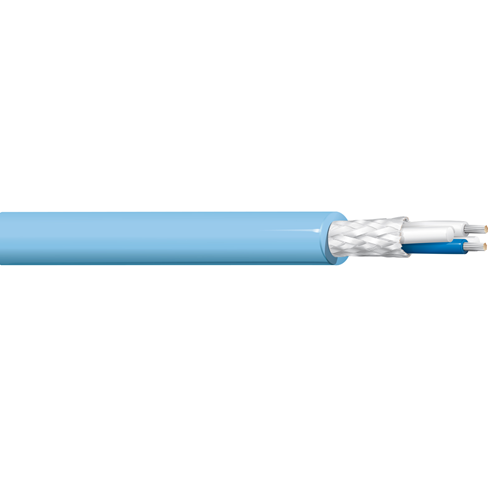

Belden 81553 24 AWG 2 Conductor 19x36 Stranding 150V Multi-Conductor Cable

Description:

Twinax, 77 ohm, 24 AWG stranded (19x36) 0.024" silver-coated high-strength copper alloy conductor, TFE insulation, silver-coated high-strength copper alloy braid shield (93% coverage), PFA jacket, commercial non-QPL product.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Silvered High Strength Copper Alloy (SHSCA)
• Coverage: 93%

Outer Jacket:

• Material: PFA - Perfluoroalkoxy
• Nom. Diameter: 0.129 in (3.28 mm)

Standards:

• Voltage Rating: 150 V RMS
• Operating Temperature: -55°C To +200°C
• Nom. Characteristic Impedance: 77 Ohms

Applications:

• Harsh Environment, IIoT, Factory or Process Automation, Video, Audio, Data Communication, etc.
