Belden 6320UL Cable 18 AWG 2 Conductors Fire Alarm Commercial Applications Unshielded Plenum Rated Power Limited Cable
Belden 6320UL Cable 18 AWG 2 Conductors Fire Alarm Commercial Applications Unshielded Plenum Rated Power Limited Cable
SKU: SKU:
- Belden 6320UL Cable 18 AWG 2 Conductors Fire Alarm Commercial Applications Unshielded Plenum Rated Power Limited Cable
- Belden 6320UL Cable 18 AWG 2 Conductors Fire Alarm Commercial Applications Unshielded Plenum Rated Power Limited Cable
Couldn't load pickup availability
Belden 6320UL Cable 18 AWG 2 Conductors Fire Alarm Commercial Applications Unshielded Plenum Rated Power Limited Cable

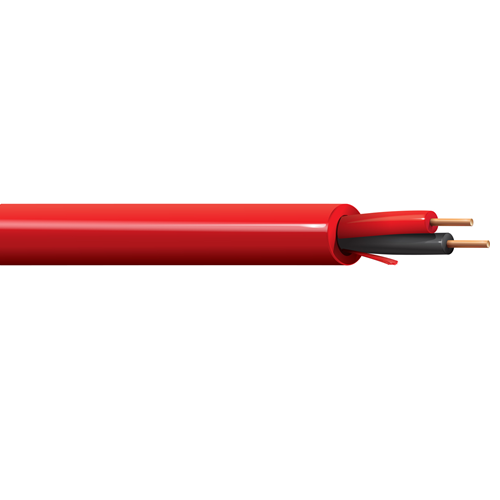

Bare copper conductors, Flamarrest insulation, cabled together, Red Flamarrest jacket with rip cord. Shielded version has overall Beldfoil shield tape (foil side out) and drain wire. Sequential footage marking every two feet.
Applications:
• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 18 |
| No. of Cond. | 2 |
| stranding | solid |
| standard lengths (ft.) | C-500 |
| standard lengths (m) | C-152 |
| standard unit weight (lbs.) | 8.0 |
| standard unit weight (kg) | 3.6 |
| outer jacket thickness (inch) | .010 |
| outer jacket thickness (mm) | .25 |
| nominal od (inch) | .151 |
| nominal od (mm) | 3.84 |
| belden cable part number | 6320UL |
