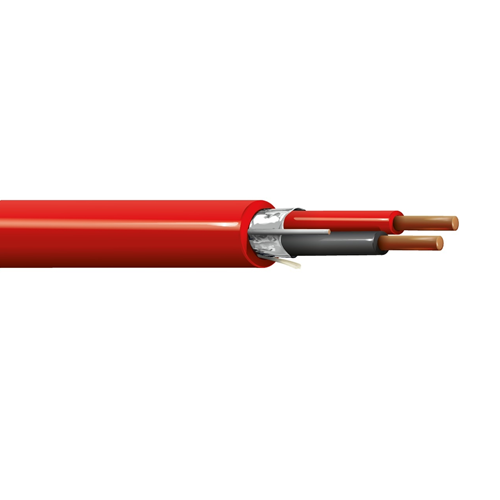

Belden 6320FL 18 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Plenum-FPLP, 2-18 AWG solid bare copper conductors with Flamarrest insulation, overall Beldfoil shield, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.0605 in (1.54 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (Solid) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.155 in (3.94 mm)
• Overall Cable Diameter (Nominal): 0.155 in (3.94 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C To +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment
