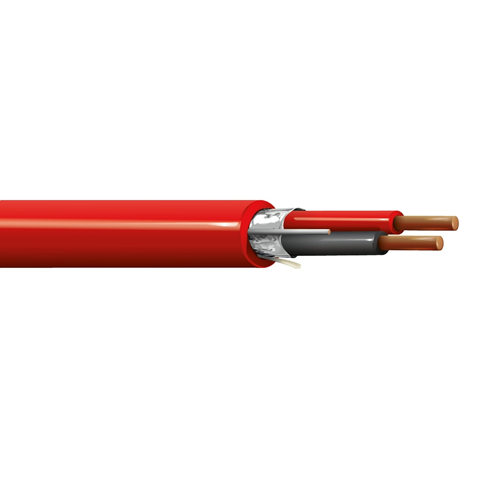

Belden 6120FL 14 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Plenum-FPLP, 2-14 AWG solid bare copper conductors with Flamarrest insulation, overall Beldfoil shield, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Insulation Diameter: 0.0886 in (2.25 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper
• Overall Beldfoil shield tape (aluminum foil/polyester laminate) providing 100% coverage, with a solid tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.209 in (5.31 mm)
• Overall Cable Diameter (Nominal): 0.209 in (5.31 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C to +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment
