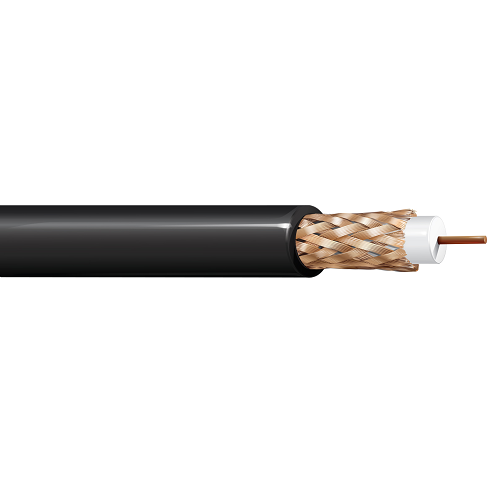

Belden 573945 25 AWG 1 Conductor Solid Bare Copper 300V Surveillance and CCTV Coax Cable

Description:

25 AWG bare copper conductor, foam polyethylene insulation, bare copper braid shield, sequential footage marking every two feet.

Insulation:

• Material: Gas-injected FPE - Foam Polyethylene
• Dia. (in.): 0.085

Outer Shield:

• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 0.94

Outer Jacket:

• Material: PVC - Polyvinyl Chloride

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Analog/Video CCTV

Specifications:

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: Solid
• RG Type: Mini 59/U
• Nom. Diameter: 0.018
• Conductor Material: BC - Bare Copper
• Part Number: 573945
