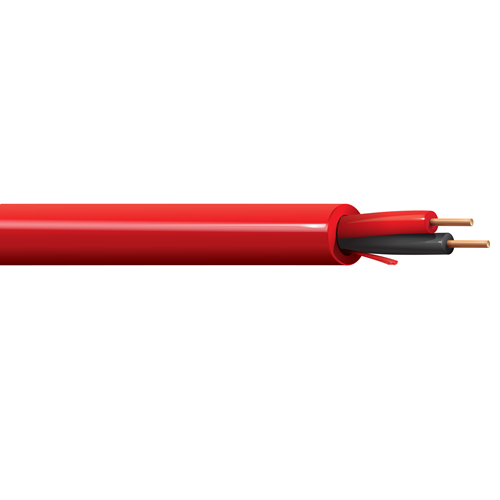

Bare copper conductors, foam high-density polyethylene insulation, cabled together, Red PVC jacket with rip cord. Sequential footage marking every two feet.
Applications:
• Addressable Fire Systems
• Data Circuits
• Monitor/Detection
• Control Circuits
• Initiating Circuits
• Notification Circuits
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 18 |
| No. of Cond. | 2 |
| stranding | solid |
| standard lengths (ft.) | U-1000 |
| standard lengths (m) | U-305 |
| standard unit weight (lbs.) | 22.0 |
| standard unit weight (kg ) | 10.0 |
| outer jacket thickness (inch) | .015 |
| outer jacket thickness (mm) | .38 |
| nominal od (inch) | .206 |
| nominal od (mm) | 5.23 |
| belden cable part number | 5320UJ |
