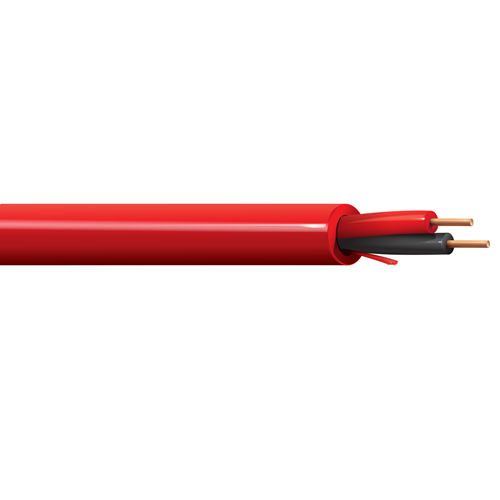

Belden 5220UJ 16 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Rated-FPL, 2-16 AWG solid bare copper conductors with foam polyolefin insulation, PVC jacket with ripcord.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.23 in
• Overall Cable Diameter (Nominal): 0.23 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Fire Alarm, Addressable Systems, Circuits: Audio, Control, Initiating, Notification
