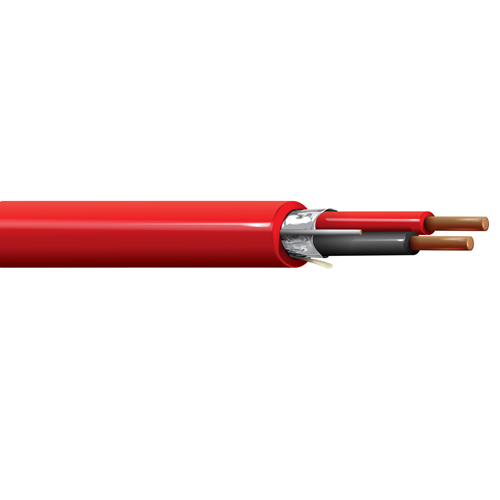

Belden 5020FL 12 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Riser-FPLR, 2-12 AWG solid bare copper conductors with polyolefin insulation, overall Beldfoil shield, PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.105 in (2.67 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC
• Overall Beldfoil (aluminum/Mylar foil shield) with a drain wire

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.243 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment
