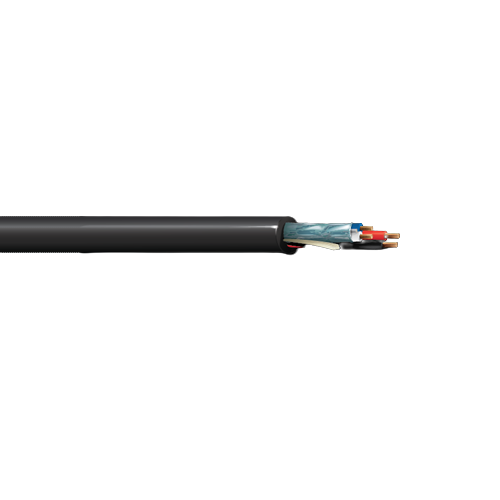

Belden 1392A 22 AWG 7x30 Stranding 18 AWG 16x30 Stranding Bare Coppe 300V Media Control Cable

Description:-

Lighting and Automation Cable, Riser-CMR, 2-18 AWG bare copper conductors unshielded, PVC insulation (power), and 1 shielded (data) pair 22 AWG stranded bare copper, PVC insulation, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Insulation Diameter: 0.079 in (2.0 mm)

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

 Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0385 in (0.978 mm)
• Nom. Diameter: 0.25 in
• Overall Cable Diameter (Nominal): 0.25 in

Standards:-

• UL Voltage Rating: 300 V
• Nominal Characteristic Impedance: 100 Ohms
• Operating Temperature Range: -20°C to +60°C

Applications:-

• Automation/Control

Specifications:-

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: BC - Bare Copper
• Part Number: 1392A
