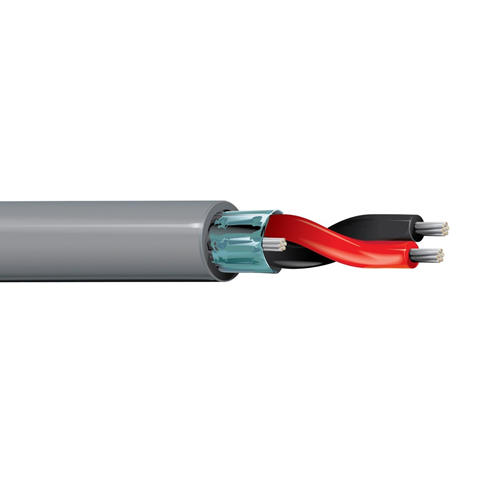

Belden 9452 24 AWG 2 Conductor 19x36 Stranding Tinned Copper 200 V Microphone Cable

Description:

Microphone Cable, 2 Conductor 24 AWG (19 x 36) Tined Copper (High conductivity), PE Insulation, Noise reducing tape, Overall Beldfoil Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Outer Shield:

• Shield Type: Tape
• Material: Textile (Conductive)
• Coverage: 100%
• Drainwire Type: 24 AWG (19x36) TC

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Beldfoil (aluminum-laminated polyester film) with 100% coverage and a 24 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.135 in (3.43 mm)
• Overall Cable Diameter (Nominal): 0.135 in (3.43 mm)

Standards:

• Voltage Rating: 200 V.
• Temperature Range: -40°C to +75°C.
• Impedance: 56 Ohm

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
