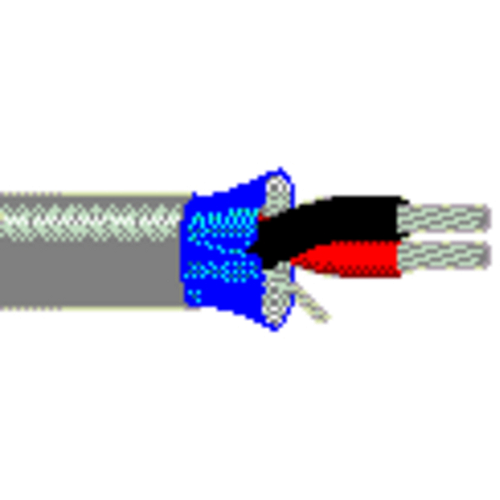

Belden 9451WB Cable 22 AWG Audio Single Pair Stranded 7x30 TC Waterblocked Tape PE Jacket Cable

Belden 9451WB Cable 22 AWG Audio Single Pair Stranded 7x30 TC Waterblocked Tape PE Jacket Cable

Description:
• 22 AWG stranded (7x30) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, waterblock tape, polyethylene jacket.

Insulation:
• Material: PP - Polypropylene

Outer Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper
• Outer Shield Waterblocking Tape: Yes

Outer Jacket:
• Material: PE - Polyethylene

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -40°C To +60°C
• Bulk Cable Weight: 16.370 Kg/Km
• Max. Recommended Pulling Tension: 120.101 N
• Min. Bend Radius/Minor Axis: 44.450 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 12/01/2011
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 114.835
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 219.827
• Nominal Velocity of Propagation (VP %): 66
• Nominal Delay (ns/m): 4.9215
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 46.2621
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 34.451
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 2.9 Amps/Conductor @ 25°C

Suitability:
• Suitability - Outdoor: Yes
• Suitability - Buiral: Yes
• Sunlight Resistance: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No
