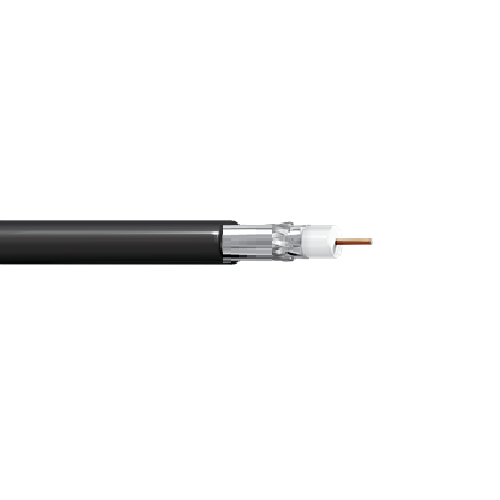

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

SKU: NES9110   Download PDF

Select a gauge:
  • Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.20 /FT   Web pricing policy
BEFORE   Now $0.20 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

Description:

Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond + aluminum braid(s) shield (67% coverage), PVC jacket.

Insulation:

• Material: FPE - Foam Polyethylene
• Nominal Diameter: 0.144 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Bonded Aluminum Foil-Polyester Tape-Aluminum Foil Material, Material Trade Name Bonded Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, AL - Aluminum Material, Coverage 67%

• Layer 3: Outer Shield Type Tape, Aluminum Foil-Polyester Tape-Aluminum Foil Material,  Material Trade Name Duofoil

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Overall Nominal Diameter: 0.242 in

Specifications:

• Size (AWG): 20
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Series Type: 59
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9110
