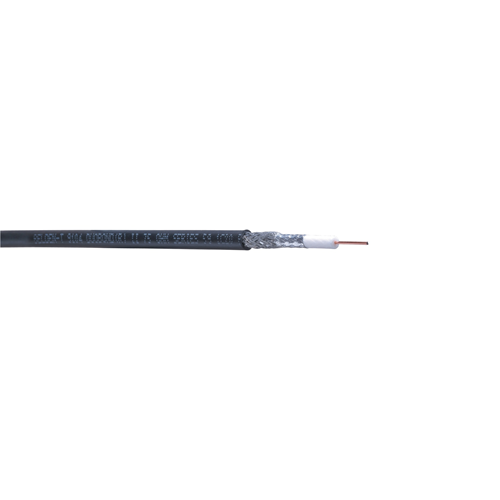

Belden 9104 20 AWG 1 Conductor Solid Series 59 Broadband 75 Ohm Coax Cable

Belden 9104 20 AWG 1 Conductor Solid Series 59 Broadband 75 Ohm Coax Cable

SKU: NES9104   Download PDF

Select a gauge:
  • Belden 9104 20 AWG 1 Conductor Solid Series 59 Broadband 75 Ohm Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.29 /FT   Web pricing policy
BEFORE   Now $0.29 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9104 20 AWG 1 Conductor Solid Series 59 Broadband 75 Ohm Coax Cable

Description:

Broadband Coax, Series 59, 20 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 65% Aluminum Braid Shield, PVC Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.237 in (6.02 mm)
• Overall Cable Diameter (Nominal): 0.237 in (6.02 mm)

Specifications:

• Size (AWG): 20
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• RG Type: 59
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9104
