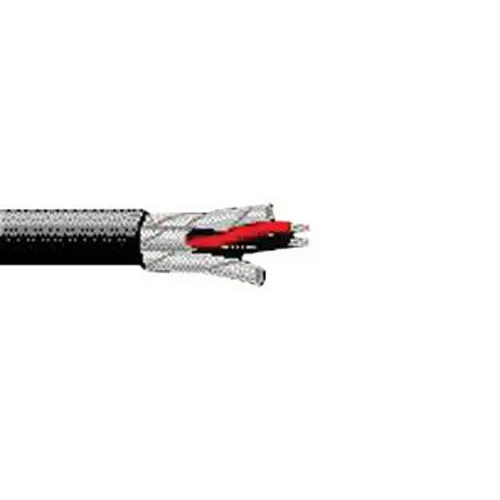

Belden 8777SB 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Audio and Instrumentation Cable

Description:-

22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually Beldfoil shielded (100% coverage), 22 AWG stranded tinned copper drain wire each pair, LSZH jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Diameter: 0.273 in

Standards:-

• UL Voltage Rating: 300 V RMS (CMG)
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -30°C To +105°C

Applications:-

• shipboard applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8777SB
