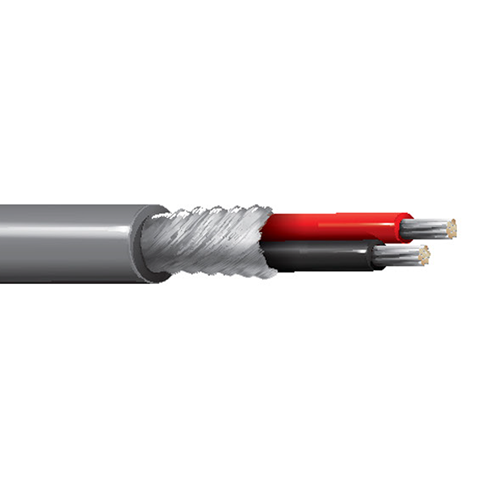

Belden 8737 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Audio Cable

Description:

22 AWG stranded (7x30) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.06 in (1.5 mm)

Outer Shield:

• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.18 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C To +80°C
• Nom. Characteristic Impedance: 49 Ohm

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8737
