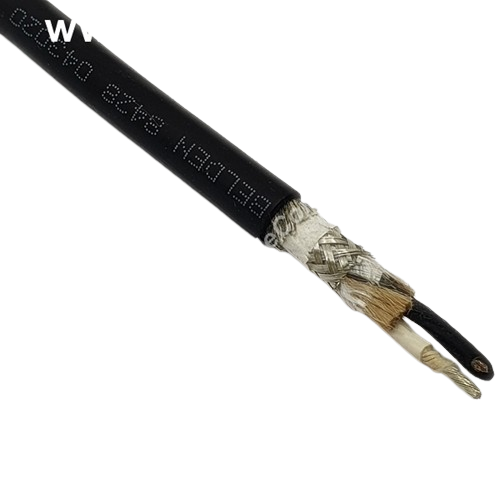

Belden 8428 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 600 V Microphone Cable

Description:

Microphone Cable, 2 Conductor, 18 AWG stranded (41x34) High-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CPE jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.0235 in (0.597 mm)
• Nom. Insulation Diameter: 0.1 in (2.5 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 85%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Inner Rayon braid wrap, Outer tinned copper braid shield (85% coverage).

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter:  0.29 in (7.4 mm)
• Cotton Serve

Standards:

• Voltage Rating: 600 V.
• Operating Temperature: -30°C to +60°C.
• Impedance: 67 Ohm characteristic impedance (nominal).

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
