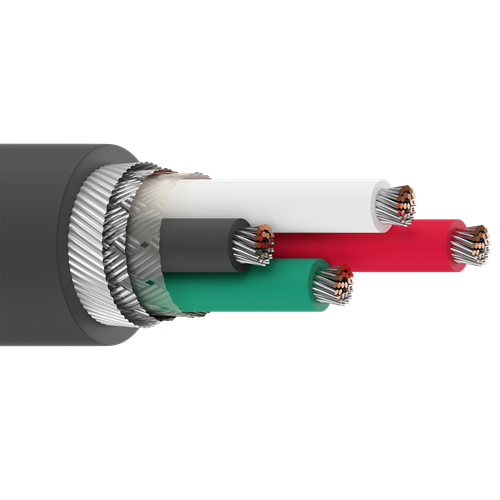

Belden 8424 20 AWG 4 Conductor 26x34 Stranding Tinned Copper Microphone Cable

Description:

Microphone Cable, Star Quad, 4 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Outer Shield Type Braid, Rayon Material, Coverage [%] 85%

• Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 85%

• Double Braid (rayon braid and 85% tinned copper braid) with a cotton wrap

Outer Jacket:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.036 in (0.91 mm)
• Nom. Diameter: 0.294 in (7.47 mm)
• Overall Cable Diameter (Nominal): 0.294 in (7.47 mm)

Standards:

• Voltage Rating: 600 V
• Impedance: 52 Ohms characteristic impedance
• Operating Temperature: -50°C to +90°

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
