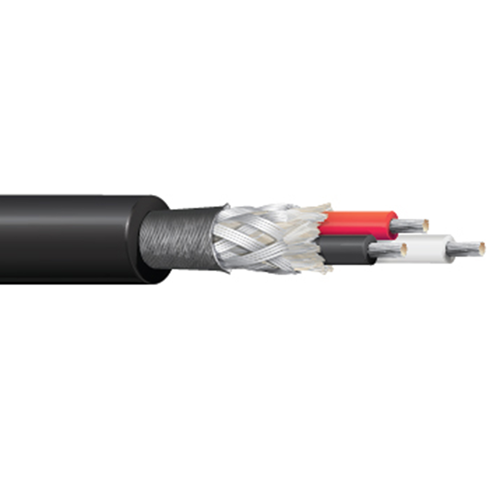

Belden 8423 20 AWG 3 Conductor 26x34 Stranding Tinned Copper 600 V Microphone Cable

Description:

Microphone Cable, 3 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 83%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 83%

• The cable utilizes a double braid shield (Rayon and Tinned Copper) with 83% coverage for effective noise immunity.

Outer Jacket:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.272 in (6.91 mm)
• Overall Cable Diameter (Nominal): 0.272 in (6.91 mm)

Standards:

• Voltage Rating: 600 V
• Nom. Impedance: 52 Ohm
• Operating Temp: -50°C to +90°C

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
