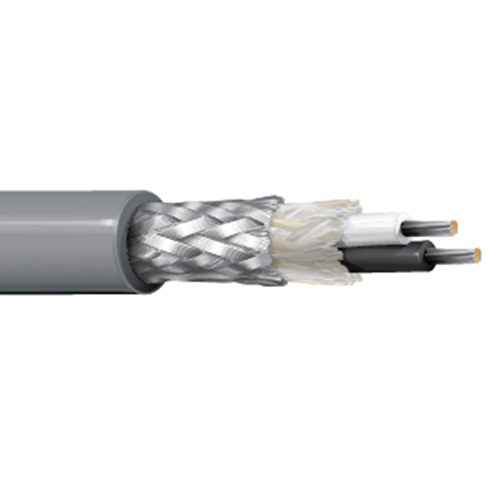

Belden 8422 22 AWG 2 Conductor 16x34 Stranding Tinned Copper Microphone Cable

Description:

Microphone Cable, 2 Conductor 22 AWG (16 x 34) Tinned Copper (High conductivity), PE Insulation, 85% Tinned Copper Braid Shield, Cotton Braid, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.072 in (1.8 mm)

Outer Shield:

• Outer Shield Type Braid, Cotton Material, Coverage [%] 85%

• Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 85%

• Shield Type: Double Braid (tinned copper braid and cotton braid)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.029 in (0.74 mm)
• Nom. Diameter: 0.231 in (5.87 mm)
• Overall Cable Diameter (Nominal): 0.231 in (5.87 mm)

Standards:

• Voltage Rating: 1000 V
• Nom. Impedance: 90 Ohm
• Operating Temp: -40°C to +80°C
• Nom. Capacitance: 18 pF/ft (conductor to conductor)

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
