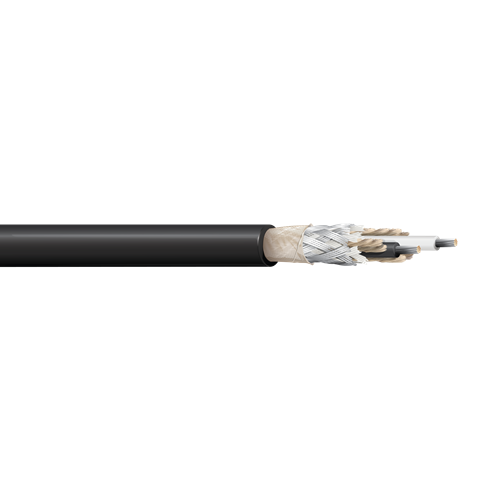

Belden 8412 20 AWG 2 Conductor 26x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 2 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 85%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• 85% coverage tinned copper braid shield, plus a rayon braid and cotton wrap for added durability and noise rejection.

Outer Jacket:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.262 in (6.65 mm)
• Overall Cable Diameter (Nominal): 0.262 in (6.65 mm)

Standards:

• Voltage Rating: 600 V.
• Characteristic Impedance: 67 Ohm.
• Operating Temperature: -50°C to +90°C.

Applications:

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
