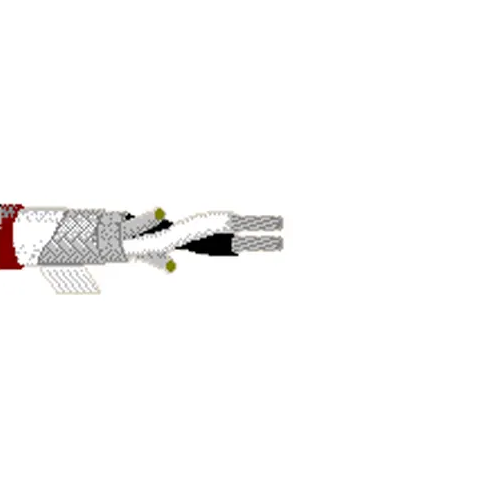

Belden 8408 16 AWG 2 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable

Description:-

Microphone Cable, 2 Conductor 16 AWG stranded (65x34) high-conductivity tinned copper conductors, EPDM rubber insulation, rayon braid, tinned copper braid shield (85% coverage), cotton wrap, CSPE - Chlorosulphonated Polyethylene heavy-duty jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Insulation Diameter: 0.133 in (3.38 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Rayon
• Coverage [%]: 85%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%

Outer Jacket:-

• Material: CSPE - Chlorosulphonated Polyethylene
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.38 in (9.7 mm)
• Separator: Cotton Serve

Standards:-

• Voltage Rating: 600 V
• Nom. Characteristic Impedance: 59 Ohm
• Operating Temperature Range: -30°C To +60°C

Applications:-

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:-

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 65x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8408
