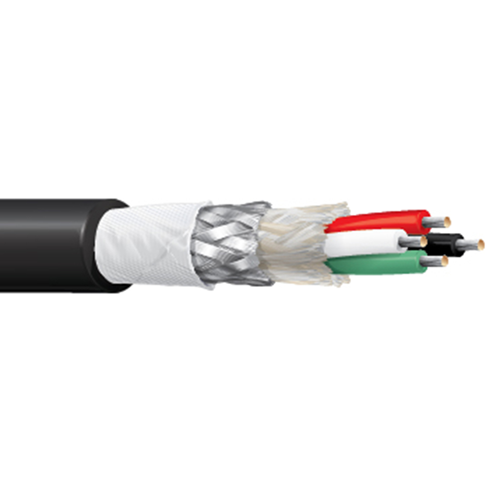

Belden 8407 16 AWG 4 Conductor 65x34 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, Star Quad, 4 Conductor 16 AWG (65 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon Braid, 85% Tinned Copper Braid Shield, Cotton Serve, CPE Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Insulation Diameter: 0.12 in (3.0 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 20%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• A multi-layer shield system consisting of a rayon braid (20% coverage), an 85% tinned copper braid shield, and a cotton serve.

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.043 in (1.1 mm)
• Nom. Diameter: 0.416 in (10.6 mm)
• Overall Cable Diameter (Nominal): 0.416 in (10.6 mm)

Standards:

• Voltage Rating: 600 V.
• Nom. Impedance: 44 Ohm
• Operating Temperature Range: -30°C to +60°C.
• Capacitance: Nominal capacitance of 30 pF/ft (conductor to conductor).

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
