Description:

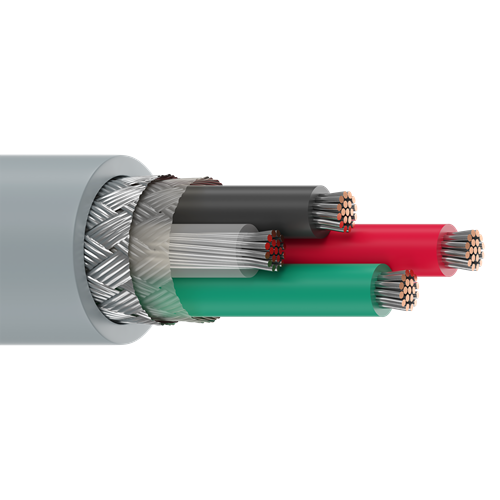

• 20 AWG stranded (19x32) high-conductivity tinned copper conductors, polyethylene insulation, rayon braid, tinned copper braid shield (85% coverage), PVC jacket.

Insulation:
• Material: PE - Polyethylene
• Wall Thickness (in.): 0.016
• Diameter (in.): 0.069

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (in.): 0.032

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -20°C To +60°C
• Non-UL Temperature Rating: 60°C (UL AWM Style 2094)
• Bulk Cable Weight: 46 lbs/1000 ft.
• Max. Recommended Pulling Tension: 100 lbs.
• Min. Bend Radius/Minor Axis: 2.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• AWM Specification: UL Style 2094 (300 V 60°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 45
• Nom. Inductance (μH/ft): 0.20
• Nom. Capacitance Conductor to Conductor (pF/ft): 23.0
• Nom. Cap. Between Cond. in a Quad Config. (pF/ft): 49
• Nominal Velocity of Propagation: VP (%): 66
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 10.2
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.23
• Max. Operating Voltage - UL: 300 V RMS (UL AWM Style 2094)
• Max. Recommended Current: 3.1 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: VW-1

Plenum/Non-Plenum:
• Plenum (Y/N): No
