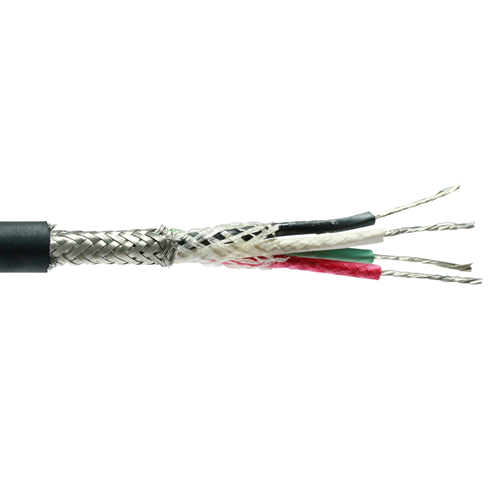

Belden 8403 20 AWG 3 Conductor 19x32 Stranding Tinned Copper 600V Microphone Cable

Description:

Microphone Cable, 3 Conductor 20 AWG (19 x 32) Tinned Copper (High conductivity), PE Insulation, Rayon Braid, 90% Tinned Copper Braid Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.069 in (1.8 mm)

Outer Shield:

• Shield Type: Braid
• Material: Rayon
• Coverage: 90%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.244 in (6.20 mm)
• Overall Cable Diameter (Nominal): 0.244 in (6.20 mm)

Standards:

• Voltage Rating: 600 V
• Operating Temp: -20°C to +80°C

Applications:

• Low frequency microphone or musical instruments; Balanced analog audio
