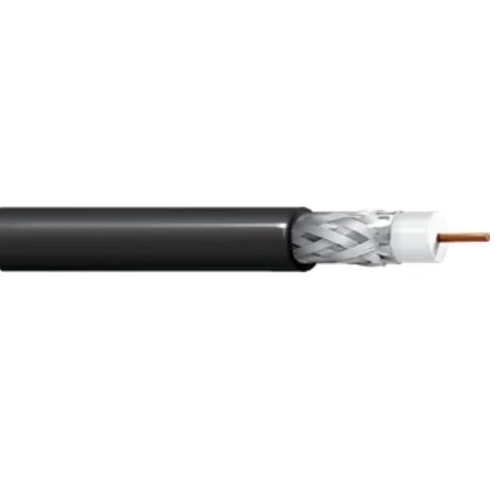

Belden 82108 20 AWG 1 Conductor Solid Bare Copper Covered Steel 300V CATV Video Coax Cable

Description:-

Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, plenum, foam FEP insulation, Duofoil (100% coverage); TC braid shield (95% coverage), Flamarrest jacket.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Material Trade Name: Teflon
• Nominal Diameter: 0.14 in

 Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nominal Diameter: 0.202 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: 0°C to +75°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.032 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 82108
