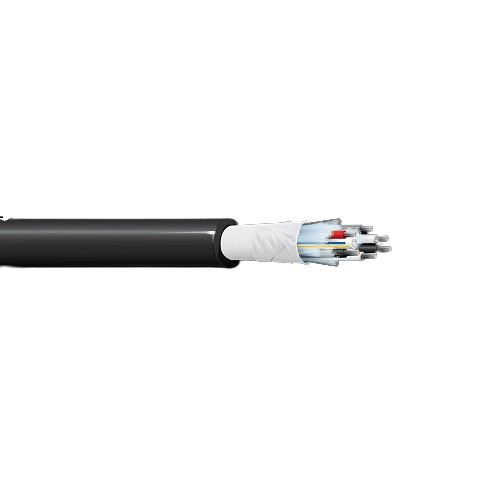

Belden 7804P 24 AWG 2 Conductor 20 AWG 4 Conductor 2 Fiber SMPTE 311M Cable

Description:-

Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), Flamarrest Jacket, Plenum

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: SMPTE 311

Fiber Specifications:-

• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Fiber Count: 2
• Fiber Color Code: Yellow, Blue

Outer Jacket Specifications:-

• Jacket Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.259 in (6.58 mm)

Optical Characteristics:-

• Wavelength: Max. Attenuation
• 1310 nm: 0.50 dB/km
• 1550 nm: 0.50 dB/km

Specifications:-

• Size (AWG): 24 AWG
• No. of Conductor: 2
• Stranding: 7x32

• Size (AWG): 20 AWG
• No. of Conductor: 4
• Stranding: 19x32
• Fiber Count: 2
• Insulation Material: FEP
• Part Number: 7804P
