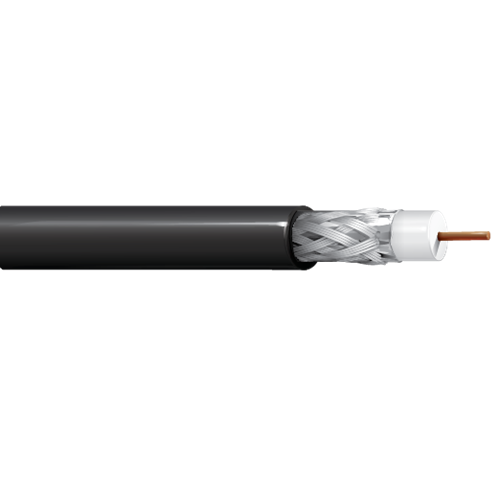

Belden 7732A 14 AWG 1 Conductor Solid Bare Copper 300V Coax Cable

Description:

75 Ohm SDI Coax, RG-11, 14 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVDF Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.274 in (6.96 mm)

Outer Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.348 in (8.84 mm)
• Overall Cable Diameter (Nominal): 0.348 in (8.84 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -20°C to +125°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Specifications:

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 7732A
