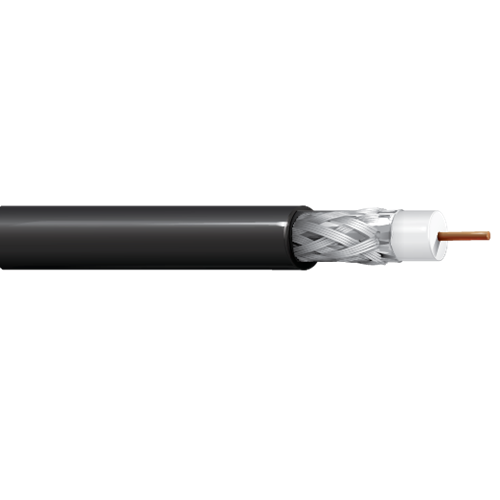

Belden 7731WB Cable 14 AWG Precision Video Coax Individual Jacket Low Loss Serial Digital PE Jacket Cable

Description:
• RG-11/U type, 14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), Flooding Grease, PE jacket.

Insulation:
• Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Diameter (in.): 0.280

Outer Jacket:
• Material: PE - Polyethylene

Mechanical Characteristics (Overall):
• Operating Temperature Range: -30°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 82 lbs/1000 ft.
• Max. Recommended Pulling Tension: 145 lbs.
• Min. Bend Radius/Minor Axis: 4 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: Sub-miniature 11/U

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 75
• Nom. Inductance (μH/ft): 0.097
• Nom. Capacitance Conductor to Shield (pF/ft): 16.0
• Nominal Velocity of Propagation: VP (%): 85
• Nominal Delay (ns/ft): 1.21
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 2.5
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 1.5
• Max. Operating Voltage - UL: 300 V RMS
• Sweep Test: 100% Sweep tested 5 MHz to 4.5 GHz.

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: Yes
• Sunlight Resistance: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No
