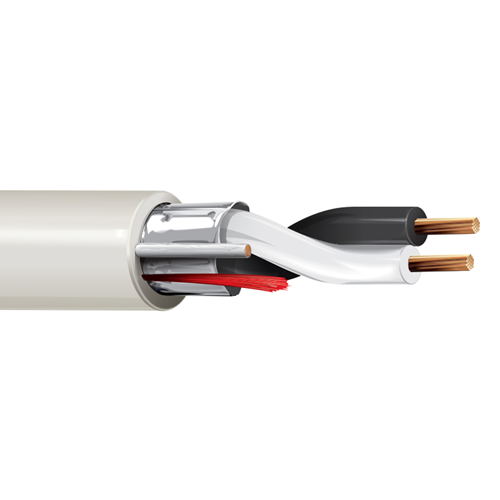

Belden 6400FE Cable 20 AWG 2 Conductors Security and Alarm Audio Plenum CMP Flamarrest Jacket Cable

Belden 6400FE Cable 20 AWG 2 Conductors Security and Alarm Audio Plenum CMP Flamarrest Jacket Cable

Select gauge from drop-down menu for prices:

Belden 6400FE Cable 20 AWG 2 Conductors Security and Alarm Audio Plenum CMP Flamarrest Jacket Cable

Regular price $501.00 $334.00 Sale /per Foot

Belden 6400FE Cable 20 AWG 2 Conductors Security and Alarm Audio Plenum CMP Flamarrest Jacket Cable

Description:
• Security & Commercial Audio Cable, Plenum-CMP, 2-20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Insulation:
• Trade Name: Flamarrest®
• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Wall Thickness (mm): 0.229

Outer Shield Drain Wire AWG:
• AWG: 24
• Stranding: 7x32
• Material: TC - Tinned Copper

Outer Jacket:
• Trade Name: Flamarrest®
• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.381
• Outer Jacket Ripcord: Yes

Overall Cabling Lay Length and Direction:
• Length (mm): 50.7998
• Twists (twist/m): 19.686

Usage (Overall):
Applications:
• Intercom/PA Systems and Sound/Audio Systems.

Mechanical Charactertistics (Overall):
• Operating Temperature Range: 0°C To +75°C
• UL Tempeature Rating: 75°C
• Bulk Cable Weight: 22.770 Kg/Km
• Max. Recommended Pulling Tension: 165.028 N
• Min. Bend Radius/Minor Axis: 38.100 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• NEC Articles: 800
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.52496
• Nom. Capacitance Conductor to Conductor (pF/m): 183.736
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 330.725
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 33.7943
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 54.793
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 3.75 Amps/Conductor @ 25°C ambient (10C temp. rise)

Flame Test:
• UL Flame Test: NFPA 262
• C(UL) Flame Test: FT6

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 5400FE

technical specification:
awg 20
# conductors 2
stranding 7x28
no. of conductors 2
conductor material bare copper
dia. (mm) -
outer shield - type tape
outer shield - material aluminum foil-polyester tape w/shorting fold
overall cable- nominal dia, (mm.) 3.607
belden cable part number 6400FE
