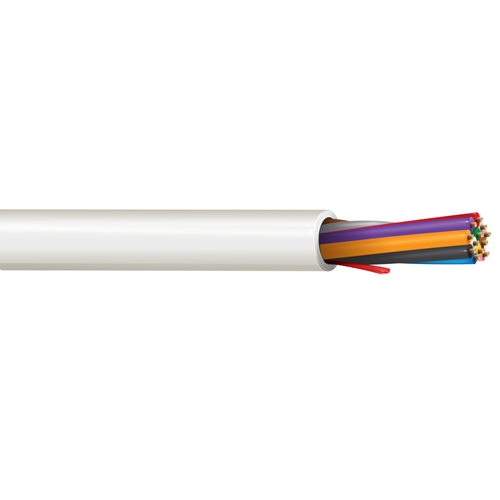

Belden 6309UE 18 AWG 12 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP 12-18 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.287 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C To +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 18
• No. of Conductor: 12
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6309UE
