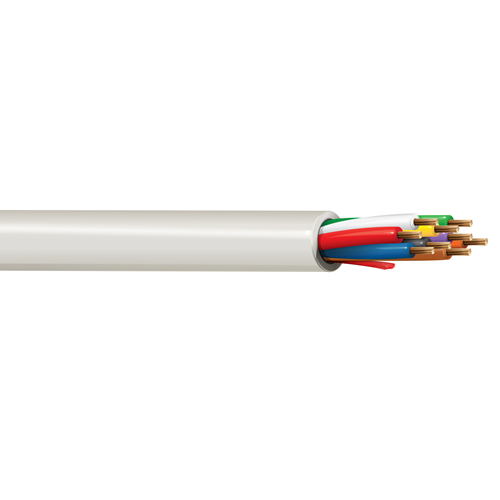

Belden 6307UE 18 AWG 9 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP 9-18 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
•  Nominal Wall Thickness: 0.009 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.262 in
• Nominal Wall Thickness: 0.015 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C To +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 18
• No. of Conductor: 9
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6307UE
