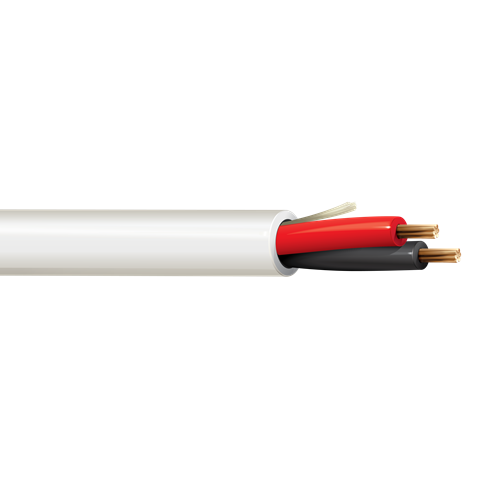

Belden 6300UE 18 AWG 2 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, Plenum-CMP, 2-18 AWG stranded (7x26) bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.063 in (1.6 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.154 in (3.91 mm)
• Overall Cable Diameter (Nominal): 0.154 in (3.91 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C to +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6300UE
