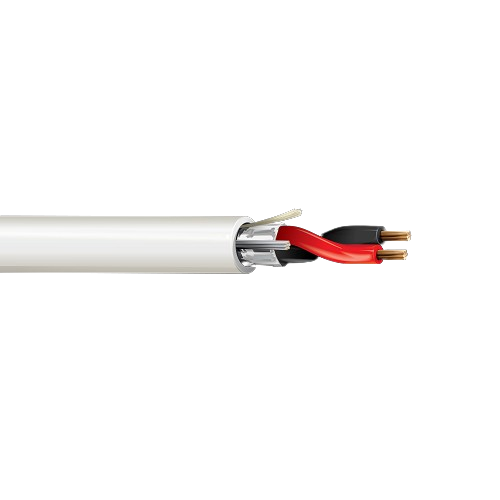

Belden 6300FC 18 AWG 2 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security, Pro Audio and Intercom Cable, 2 Conductor 18 AWG stranded (7x26) bare copper conductors with FEP insulation, Beldfoil shield, Plenum, Flamarrest jacket with ripcord.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.006 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.155 in
• Nominal Wall Thickness: 0.0165 in
• Material Trade Name: Flamarrest

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 29 Ohms
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Pro Audio, Intercom/PA Systems, Security Systems

Specifications:-

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6300FC
