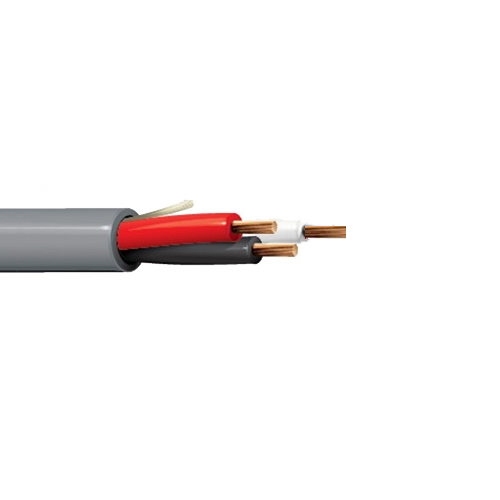

Belden 6001UE 12 AWG 3 Conductor 19x25 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, 3 Conductor 12 AWG stranded (19x25) bare copper conductors with Flamarrest insulation, Plenum, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.113 in (2.87 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.273 in
• Overall Cable Diameter (Nominal): 0.273 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 12
• No. of Conductor: 3
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 6001UE
