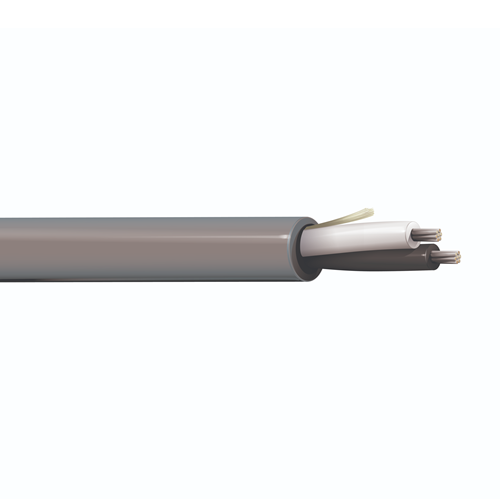

Belden 5T00UP Cable 10 AWG Riser High Flex Bare Copper Speaker Cable

Belden 5T00UP Cable 10 AWG Riser High Flex Bare Copper Speaker Cable

Min Length: 50 FT

Regular price $2.73 $1.82 Sale /per Foot

Belden 5T00UP Cable 10 AWG Riser High Flex Bare Copper Speaker Cable

Commercial Audio Cable, Rated-CL3, 2-10 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Benefits & Features:
• All cables feature Electrolytic Tough Pitch (ETP) virgin copper construction. The speaker cable line includes direct burial speaker cable with ultra-high purity (99.995%), sometimes described as "oxygen-free" copper (OFC)
• Belden cables use soft drawn and annealed conductors which allow the cables to be flexed without breaking
• Belden jackets pull easier and are easier to strip, saving installation time and money

Mechanical Characteristics (Overall):
• Operating Temperature Range: -20°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 91 lbs/1000 ft.
• Max. Recommended Pulling Tension: 260 lbs.
• Min. Bend Radius/Minor Axis: 3.600 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CL2 (audio use only)
• NEC Articles: 725
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes

Flame Test:
• UL Flame Test: UL1685 UL Loading

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 6T00UP

technical specification:
awg 10
conductors 2
stranding 65x28
insulation material PVC
insulation wall thickness(in.) 0.020
insulation dia.(in.) -
outer shield material unshielded
nom. wall thickness (in.) 0.026
outer jacket ripcord yes
overall cabling lay length(in.) 4.5
overall cabling lay twists(twist/ft) 2.67
overall nominal diameter 0.356
belden cable part number 5T00UP
