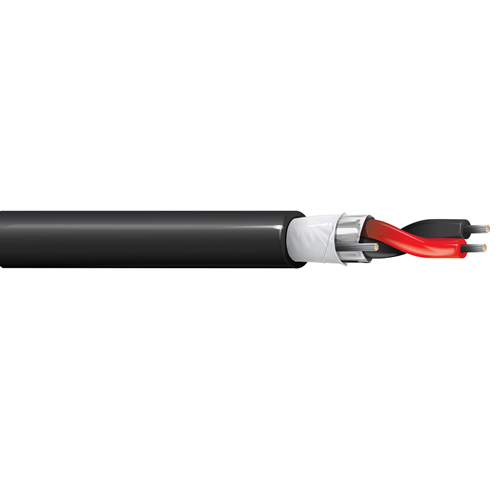

Belden 5500F1 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CM, 2-22 AWG stranded tinned copper conductors with PVC insulation, water-blocking tape, Beldfoil shield, and PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
• Waterblocking: Waterblock Tape
• Non-woven water-blocking tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.196 in (4.98 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +105°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 5500F1
