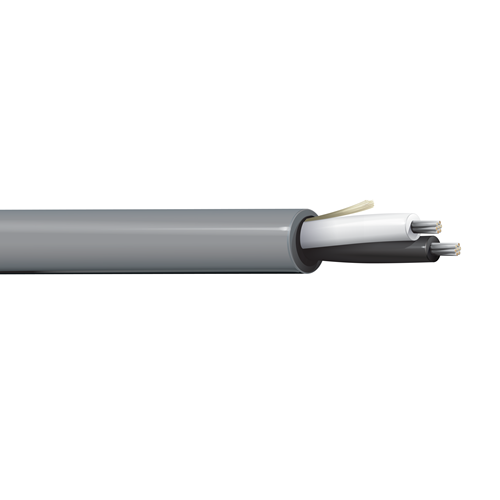

Belden 5100UP 14 AWG 2 Conductor 42x30 Stranding Bare Copper 300V Audio Cable

Description:

Audio Cable, Rated-CL3, 2-14 AWG, highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Insulation Diameter: 0.115 in (2.92 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter: 0.266 in (6.76 mm)
• Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)

Standards:

• Voltage Rating: 300 V (CL3)
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 42x30
• Conductor Material: BC - Bare Copper
• Part Number: 5100UP
