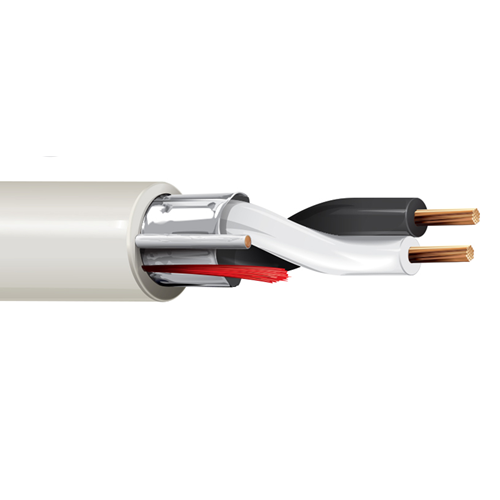

Belden 5000FE 12 AWG 2 Conductor 19x25 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, Riser-CL3R-FPLR, 2-12 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil shield, and PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.113 in (2.87 mm)

Inner Shield

• Drainwire Type: 20 AWG (Solid) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.264 in (6.71 mm)
• Overall Cable Diameter (Nominal): 0.264 in (6.71 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Fire Alarm Systems (Red only), Noisy Environment

Specifications:

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 5000FE
