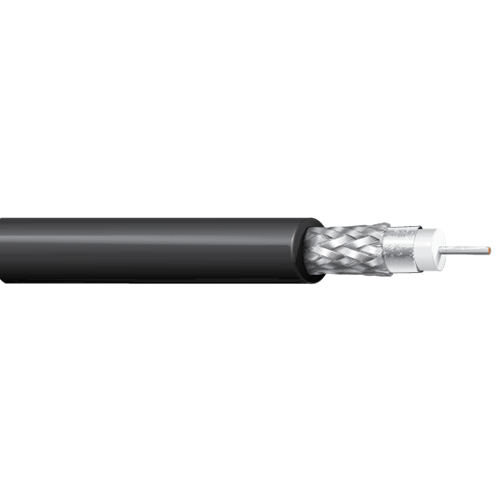

Belden 4855R 23 AWG 1 Conductor Solid Silvered Copper 300V Coax Cable

Description:

12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage), PVC Jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.102 in (2.59 mm)

Outer Shield:

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duobond II
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.159 in (4.04 mm)
• Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Standards:

• Voltage Rating: 300 V RMS (CMR, CMG)
• Operating Temperature: -30°C to +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Specifications:

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.023 in
• RG Type: Mini 59
• Conductor Material: SC - Silvered Copper
• Part Number: 4855R
